u 产品描述Product description
电器内部布线
Internal Wiring of Appliances

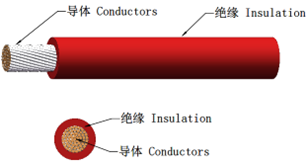

u 产品结构Product structure
导体材质Conductor material: 镀锡铜Tinned Copper
绝缘材质Insulation material: 交联聚乙烯XLPE

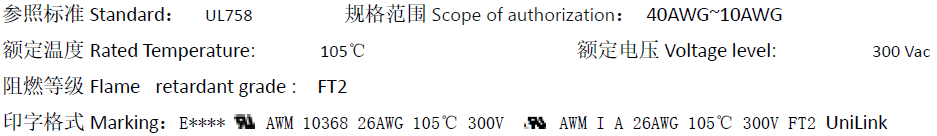

u 技术参数TECHNICAL DATA
u 产品规格Product specification
Conductor导 体 | Insulation绝缘体 | ||||
AWG 美制线规 | Construction 导体结构 | Diameter 绞合直径 | Resistance(20°C) | Thickness 标称壁厚 | Diameter 完成外径 |
AWG | n ×mm | mm | Ω/km | mm | mm |
28 | 7x0.127 | 0.44 | 239 | 0.23 | 0.9 |
26 | 7x0.16 | 0.48 | 150 | 0.23 | 1.2 |
24 | 11x0.16 | 0.61 | 94.2 | 0.23 | 1.3 |
22 | 17x0.16 | 0.80 | 59.4 | 0.23 | 1.6 |
20 | 26x0.16 | 0.95 | 36.7 | 0.23 | 2.0 |
18 | 41x0.16 | 1.20 | 23.2 | 0.23 | 2.2 |
16 | 42x0.20 | 1.50 | 14.6 | 0.23 | 2.8 |
14 | 67x0.20 | 1.95 | 8.96 | 0.23 | 3.2 |
12 | 106x0.20 | 2.53 | 5.64 | 0.23 | 3.8 |
10 | 170x0.20 | 3.16 | 3.55 | 0.23 | 4.8 |
以上产品规格、尺寸、结构可能因为技术进步而有所改变，同类规格可根据客户使用需求进行设计制造。 The above product specification, size, structure may be changed because of technology progress, similar specification can be designed and manufactured according to customer demand. | |||||
