u 产品描述Product description
ESP 10Z3Z3-K 1x4 mm²~150 mm²

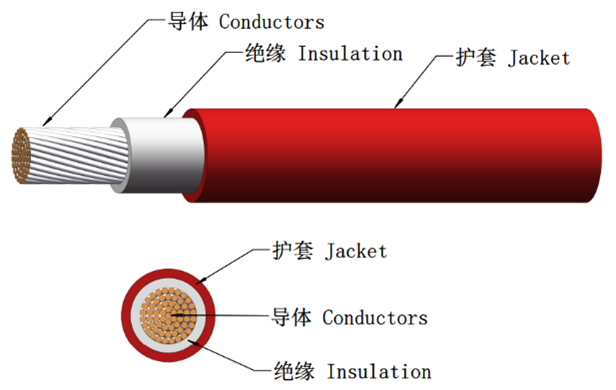

u 产品结构Product structure
导体材质Conductor material: 裸铜或镀锡铜Bare or tinned copper
绝缘材质Insulation material: 交联聚烯烃XLPO
u 技术参数TECHNICAL DATA
额定温度Rated Temperature: -40℃to 125℃
额定电压Rated Voltage: 1000Vdc
阻燃等级Flame retardant grade : 垂直燃烧 <S> EN60332-1-2 Vertical combustion <S> EN60332-1-2
环保要求Environmental Requirements：Compliant with RoHS and REACH
印字格式Marking：TÜV ESP 10Z3Z3-K 1x**㎜² 2 PfG 2693 UniLink Advanced Power Hubei Limited
u 产品规格Product specification
Geometry 结构 | Resistance(20°C) 导体电阻 | Insulation 绝缘 | Jacket 护套 | ||||
Cross-section 截面规格 [mm²] | Construction 导体结构 N x Ø[mm] | Diameter 绞合外径 [mm] | 20℃max. [Ω/km] | Wall thickness 平均壁厚 [mm] | Diameter 完成外径 [mm] | Wall thickness 平均壁厚 [mm] | Diameter 完成外径 [mm] |
4 | 126 x 0.2 | 2.7 | 4.95 | 0.7 | 4.3 | 1.0 | 6.5 |
6 | 189 x 0.2 | 3.2 | 3.30 | 0.7 | 5.0 | 1.0 | 7.2 |
10 | 322 x 0.2 | 4.2 | 1.91 | 0.7 | 6.2 | 1.1 | 8.6 |
16 | 511 x 0.2 | 5.4 | 1.21 | 0.7 | 7.5 | 1.1 | 9.9 |
25 | 798 x 0.2 | 6.5 | 0.780 | 0.9 | 9.3 | 1.2 | 12.0 |
35 | 1121x 0.2 | 8.1 | 0.554 | 0.9 | 10.7 | 1.2 | 13.4 |
50 | 1596 x 0.2 | 9.7 | 0.386 | 1.0 | 12.5 | 1.3 | 15.4 |
70 | 2242 x 0.2 | 11.3 | 0.272 | 1.1 | 14.5 | 1.4 | 17.8 |
95 | 3034 x 0.2 | 13.2 | 0.206 | 1.1 | 16.5 | 1.5 | 20.0 |
120 | 3848 x 0.2 | 14.8 | 0.161 | 1.2 | 18.5 | 1.6 | 22.3 |
150 | 4788x 0.2 | 16.5 | 0.129 | 1.4 | 20.5 | 1.7 | 24.5 |
以上产品规格、尺寸、结构可能因为技术进步而有所改变，同类规格可根据客户使用需求进行设计制造。 The above product specification, size, structure may be changed because of technology progress, similar specification can be designed and manufactured according to customer demand. | |||||||
