Cross-section

截面规格

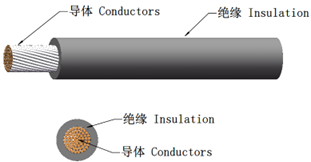

Construction

导体结构

Diameter

绞合外径

20℃max.

Wall thickness

平均壁厚

[mm]

Diameter

完成外径

[mm²]

N   x Ø[mm]

[mm]

[Ω/km]

[mm]

1.5

48 x 0.2

1.6

13.3

0.7

3.1

2.5

79 x 0.2

2.1

7.98

0.8

3.9

4

126 x 0.2

2.7

4.95

0.8

4.5

6

189 x 0.2

3.2

3.30

0.8

5.1

10

322 x 0.2

4.2

1.91

1.0

6.5

16

511 x 0.2

5.4

1.21

1.0

7.8

25

798 x 0.2

6.5

0.78

1.2

9.6

35

1115x 0.2

8.1

0.554

1.2

11.0

50

1592 x 0.2

9.7

0.386

1.4

13.0

70

2230 x 0.2

11.3

0.272

1.4

15.0

95

3024 x 0.2

13.2

0.206

1.6

17.5

120

3820 x 0.2

14.8

0.161

1.6

19.5

150

4788x 0.2

16.5

0.129

1.8

21.5

以上产品规格、尺寸、结构可能因为技术进步而有所改变，同类规格可根据客户使用需求进行设计制造。

The above product   specification, size, structure may be changed because of technology progress,   similar specification can be designed and manufactured according to customer   demand.
